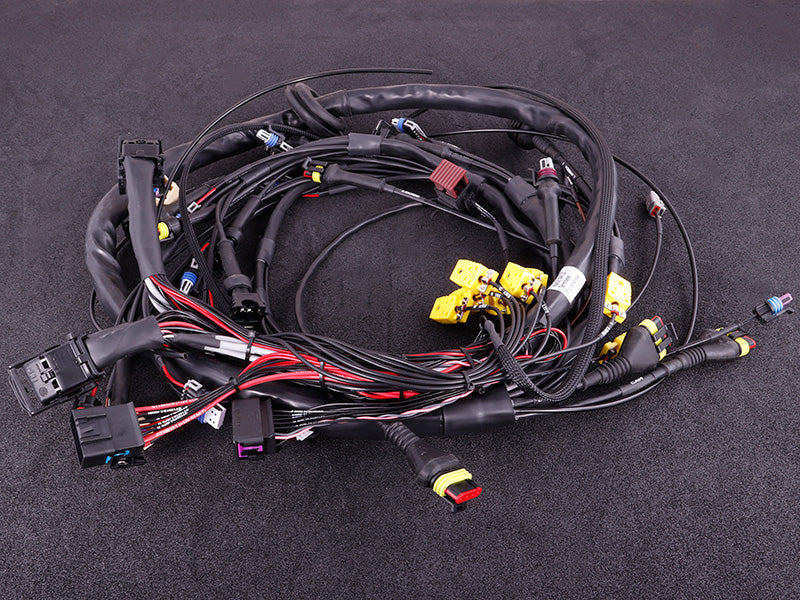

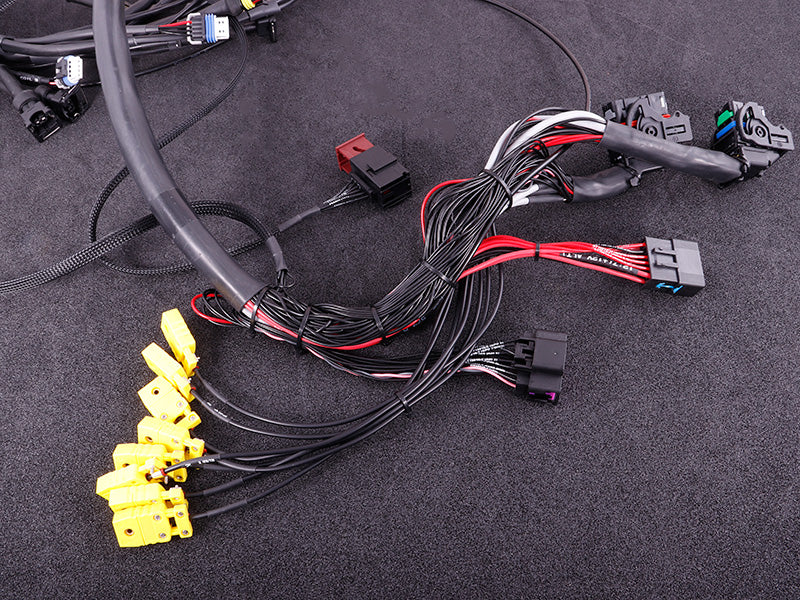

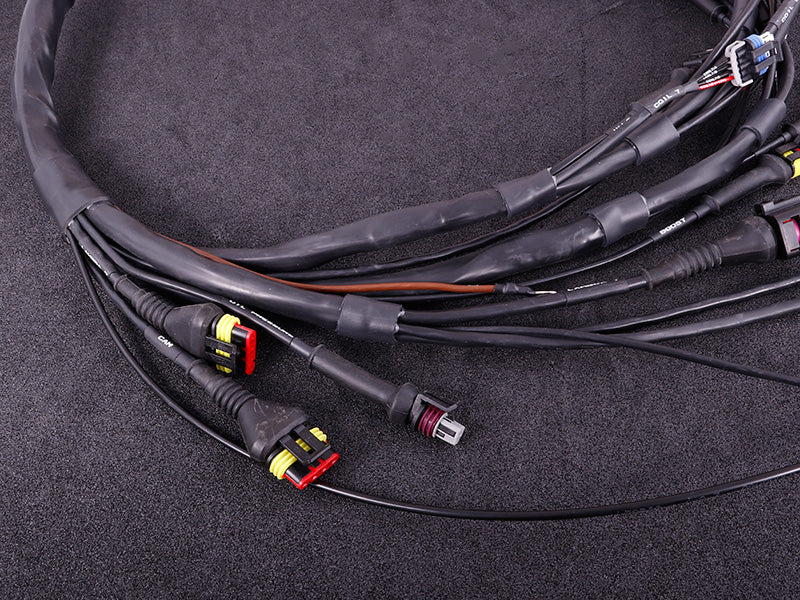

Terminated engine harness - GM LS GEN III/IV #2172

For use with MaxxEcu RACE

GEN III:

• 5.7L LS1/LS6

GEN IV:

• 6.0L LS2
• 6.2/7.0 LS3/LS4/LS7/LSX/LS9

• For E-Throttle and Hella E-pedal
• Prepared for turboapplication with an boost solenoid connector
• Bosch JPT injector connectors
• Uses stock coils
• To be used with GEN IV knocksensors
• MAP sensor hose inside harness
• 8 pcs EGT connectors in harness
• Easy to rewire to be used without E-Throttle if needed

See tech docs for more information.

https://www.maxxecu.com/webhelp/wirings-terminated_engine_harness-gm_ls.html
